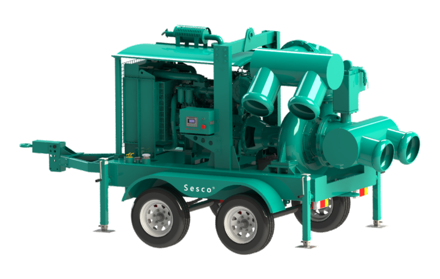

Ideal for heavy-duty applications with a maximum output of 3000 m³/hour, the pump combines robust power with user-friendly features, ensuring quick setup and effortless handling while maintaining high durability and reliability in demanding environments.
Technical SPECS
Our high vacuum system has patent certification.High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
| Machine performance | |
| Type | Trailor mounted，stationery，closed，open type |
| Max flow | 3000 m3/h |
| Max head | 30m |
| Suction height | 8m |
| Diesel engine parameters | |
| Brand recommended： | Cummins, Weichai, Yuchai |
| Power | >165kw |
| Speed | 1500rpm |
| Cooling method | Water cooled |
| Pump parameters | |
| Inlet | 16 inch |
| Outlet | 16 inch |
| Speed | 1500rpm |
| Pump case | Cast iron |
| Impeller | Cast iron/stainless steel |
| Shaft | Carbon steel/stainless steel |
| Max particle size: | 105mm |
| Accessories for option： | |
| Suction pipe，hose，quick connections，strainers，claps | |
MECHANICAL DIMENSIONS
PERFORMANCE CURVE
