This diesel-powered pump enables one-touch drainage startup and features a large-particle-proof impeller, ideal for sewage and municipal tasks. Its self-priming design eliminates water priming and supports 2+ hours of dry running. The high-efficiency vacuum system ensures rapid pumping with a 9m max suction height.
Technical SPECS
Our high vacuum system has patent certification.High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
Performance
| Machine performance | |
| Type | Trailor mounted，stationery，closed，open type |
| Max flow | 500 m3/h |
| Max Head | 44m |
| Suction height | 9m |
| Diesel engine parameters | |
| Brand recommended： | Cummins, Weichai, Yuchai |
| Power | >36kw |
| Speed | 1500~2000rpm |
| Cooling method | Water cooled or air cooled |
| Pump parameters | |
| Inlet | 6 inch |
| Outlet | 6 inch |
| Speed | 1500~2000rpm |
| Pump case | Cast iron |
| Impeller | Stainless steel SS304 |
| Shaft | Stainless steel 20Cr13 |
| Max particle size: | 76mm |
| Accessories for option： | |
| Suction pipe，hose，quick connections，strainers，claps | |

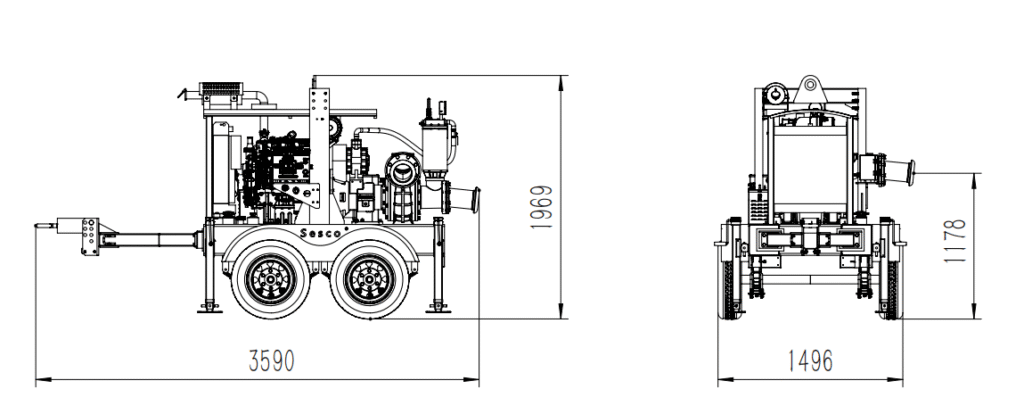

MECHANICAL DIMENSIONS

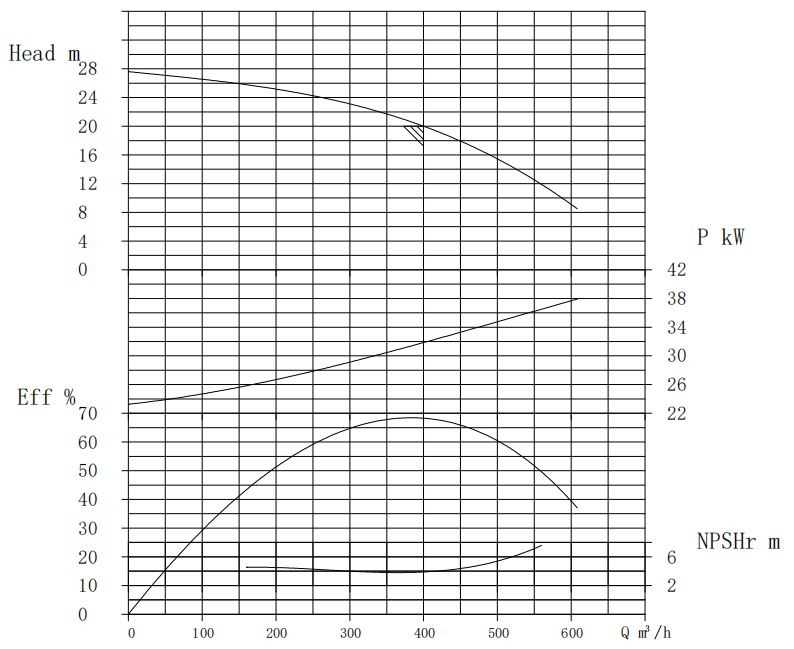

PERFORMANCE CURVE
