The specially designed impeller allows smooth passage of large particles, ensuring powerful and worry-free sewage discharge. Its wide operating speed range (1500-2000 rpm) ensures stable performance under various conditions, with a maximum drainage capacity of 800 m³/h, leading in efficiency.
Technical SPECS
Our high vacuum system has patent certification.High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
Performance
| Machine performance | |
| Type | Trailor mounted，stationery，closed，open type |
| Max flow | 800 m3/h |
| Max head | 45m |
| Suction height | >8.5m |
| Diesel engine parameters | |
| Brand recommended： | Cummins, Weichai, Yuchai |
| Power | >45kw |
| Speed | 1500~2000rpm |
| Cooling method | Air cooled or water cooled |
| Pump parameters | |
| Inlet | 8 inch |
| Outlet | 8 inch |
| Speed | 1500~1800rpm |
| Pump case | Cast iron |
| Impeller | Cast iron/stainless steel |
| Shaft | Carbon steel/stainless steel |
| Max particle size: | 76mm |
| Accessories for option： | |
| Suction pipe，hose，quick connections，strainers，claps | |
MECHANICAL DIMENSIONS

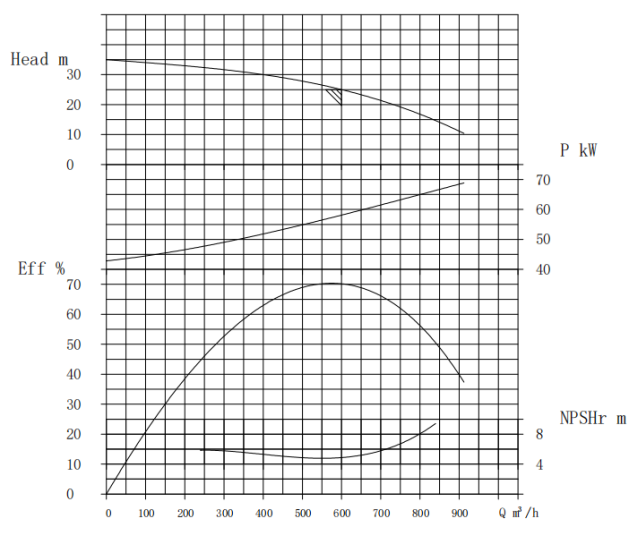

PERFORMANCE CURVE
